Product Details
＋
Product Overview

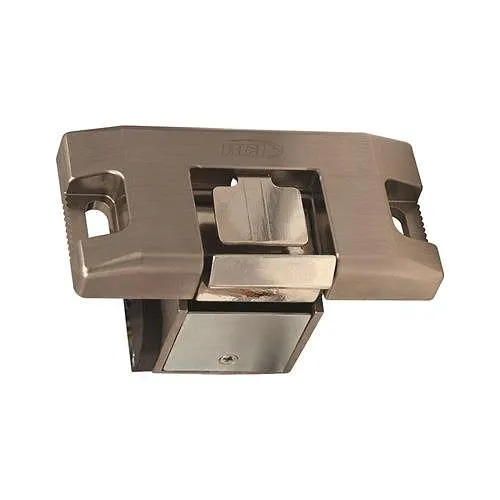

The RCI VR166 is a small footprint vertical rod strike to be used in single or double-door applications.
- Energy: 210mA (Max at 12VDC) Field-Selectable, 12/24VDC, 12-24VAC
- Mode: Fail-Secure
- Strength: 1,500lbf Static, 70ft-lb Dynamic
- Endurance: 250,000 Cycles
- Warranty: 5 Year Limited
- Monitoring: Optional Latch and Keeper Monitor Model Available\
Main Features
- This simple design requires a 63 mm x 33 mm cut-out in the frame
- Total footprint of the strike does not exceed 104 mm x 50 mm x 16 mm
- Horizontal adjustability of 8 mm for frame and door variations
- Solenoid activated
- Designed and suited to a minimum 52 mm (2 1/16") backset of the top latch
General Information
Name: RCI VR166 Vertical Rod Strike, 210mA Field Selectable, 12/24VDC, Fail-Secure, 1,500lbf Static, 70' lb. Dynamic, dormakaba Holding, RCI by dormakaba
Category: RCI by dormakaba, Access Control, Locking Devices, Electric Strikes
UPC Code: 785943400079
Country of Origin: China. Country of origin is subject to change.
