Product Details
＋

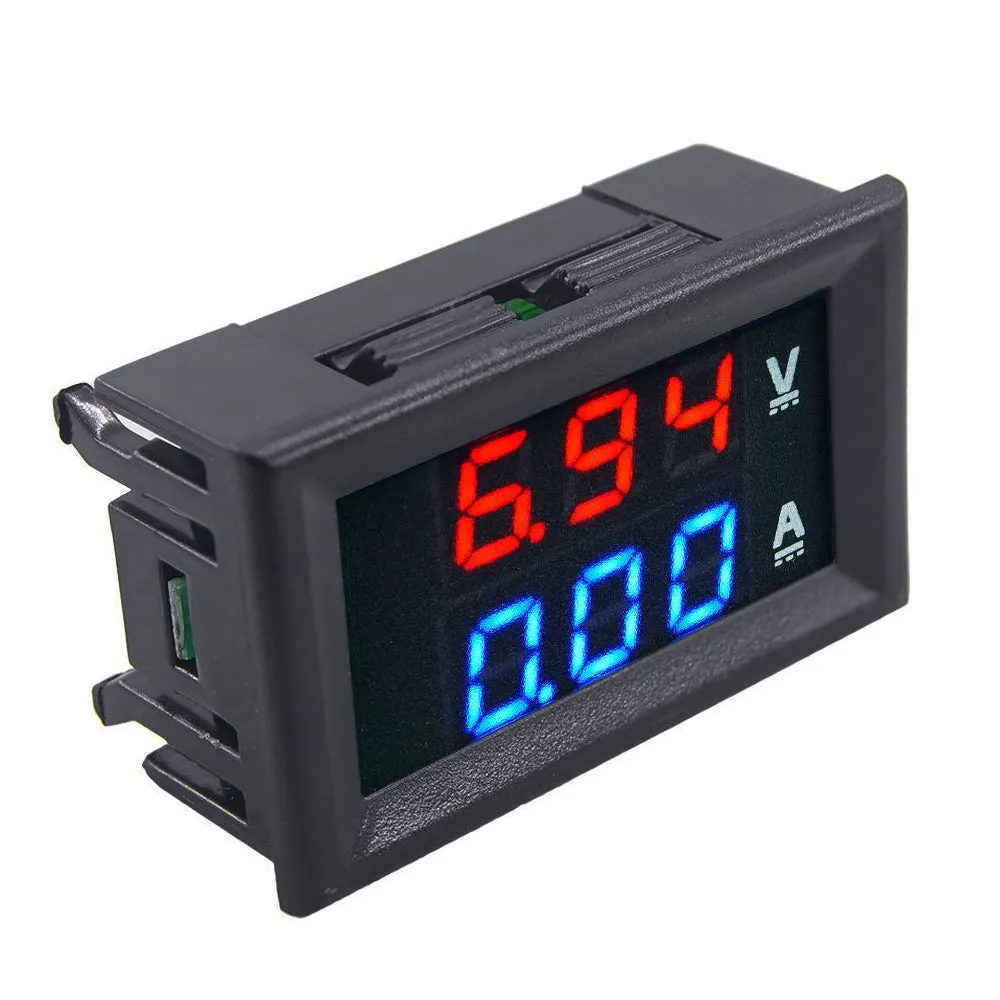

This is 0.28 inch DC 100V 100A LED Digital Ammeter–Voltmeter With Shunt. This meter will measure up to 100 VDC with a 0.1-volt resolution.

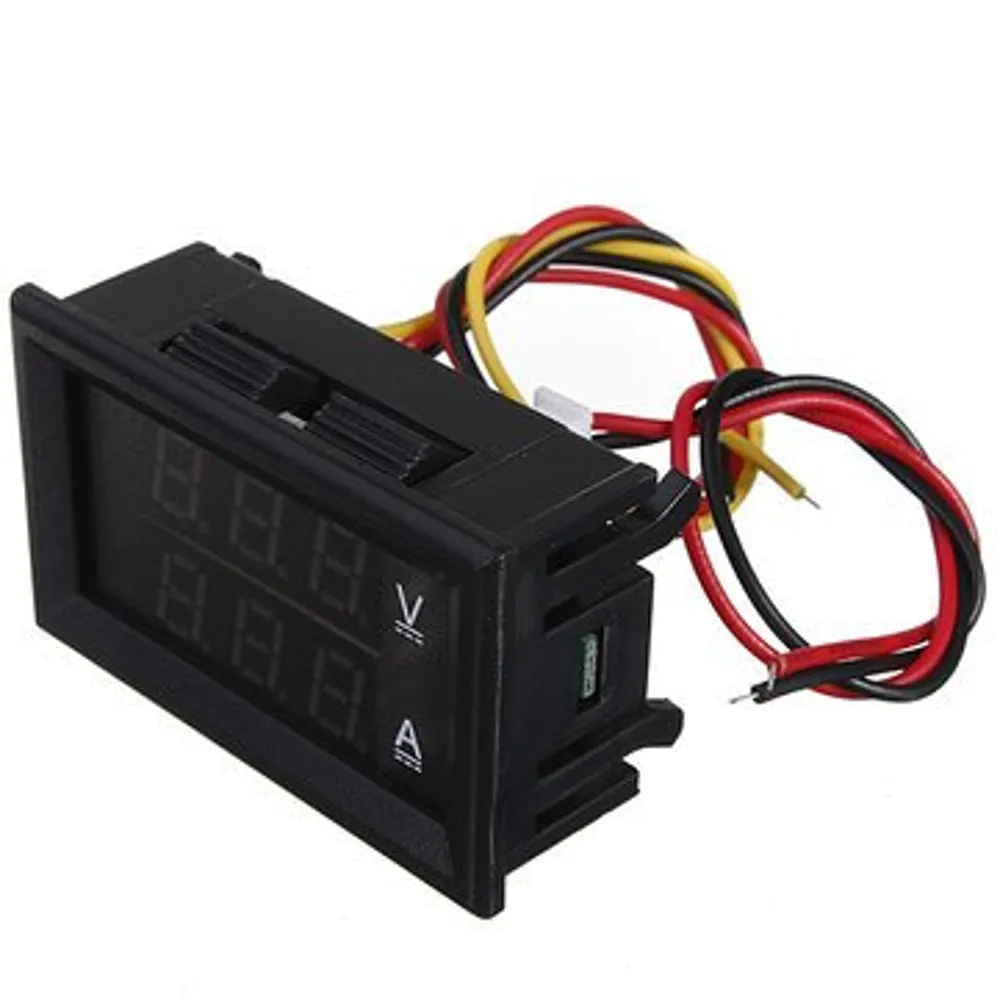

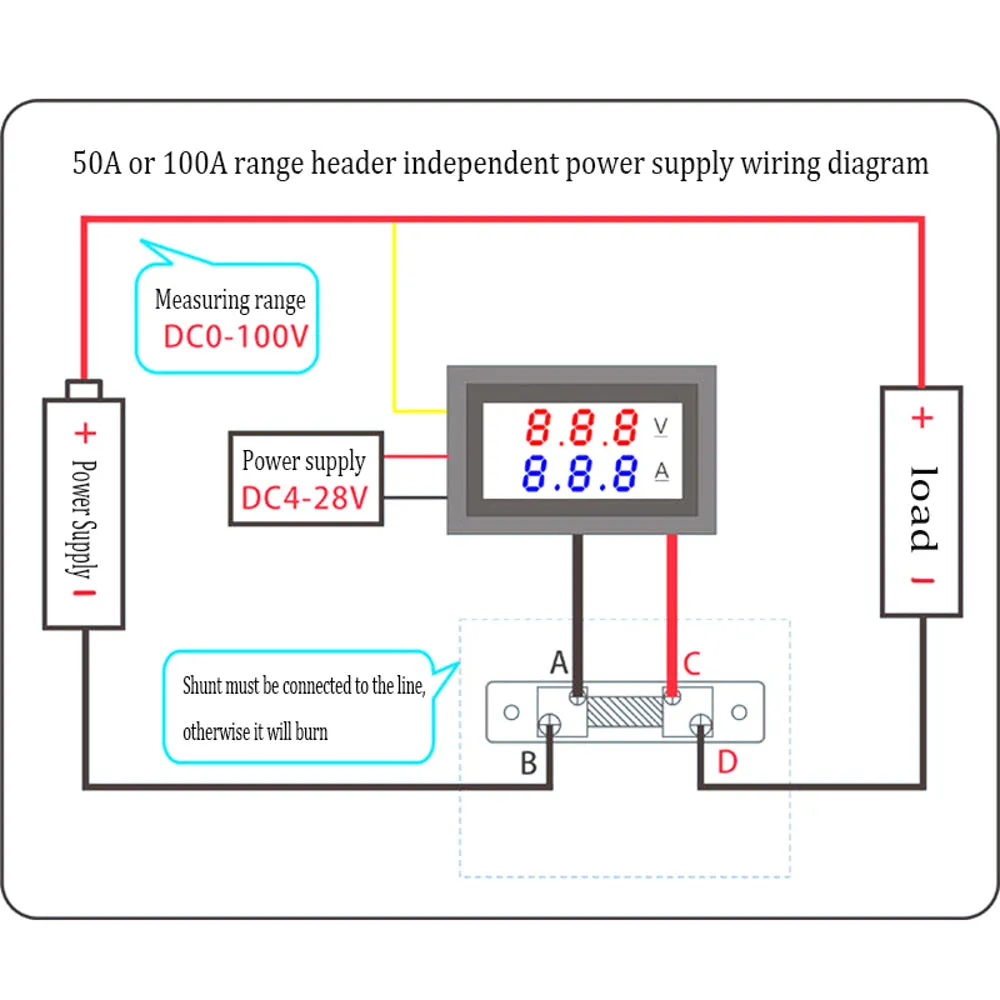

One thing to note is, this meter has 2 wiring harnesses. One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage, and current are displayed on the same screen at the same time.
This can be supplied anywhere from 6 volts DC up to 30 VDC. This is a separate power supply that is isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. The 3 wire harness is used for a ground that connects directly to the battery or supply ground of the load.
Features:
Technical Details
- Accuracy: 1
- Color: Red and Blue
- Operating Voltage (VDC): 5
- Current Consumption (mA): 60
- Testing Voltage (V): 0 to 100
- Testing Current (A): 1 to 100
- Refresh Speed (ms): 500 (one time)
- Operating Temperature (°C): -10 to 60
- Height (mm): 30
- Length (mm): 20
- Width (mm): 50
- Shunt Resistor Dimensions (mm): 120 x 25 x 20 (L x W x H)
Applications:
- Monitors voltage and current in solar systems and energy storage.
- Used for DC power supply testing and performance assessment.
- Ideal for electric vehicle (EV) battery monitoring.
- Assists in testing and troubleshooting DC circuits.
- Suitable for compact devices and DIY projects.
- Tracks power consumption in DC-powered systems.
Physical Attributes
- Height (mm): 30
- Length (mm): 20
- Width (mm): 50
- Shunt Resistor Dimensions (mm): 120 x 25 x 20 (L x W x H)
- Weight (gm) : 145

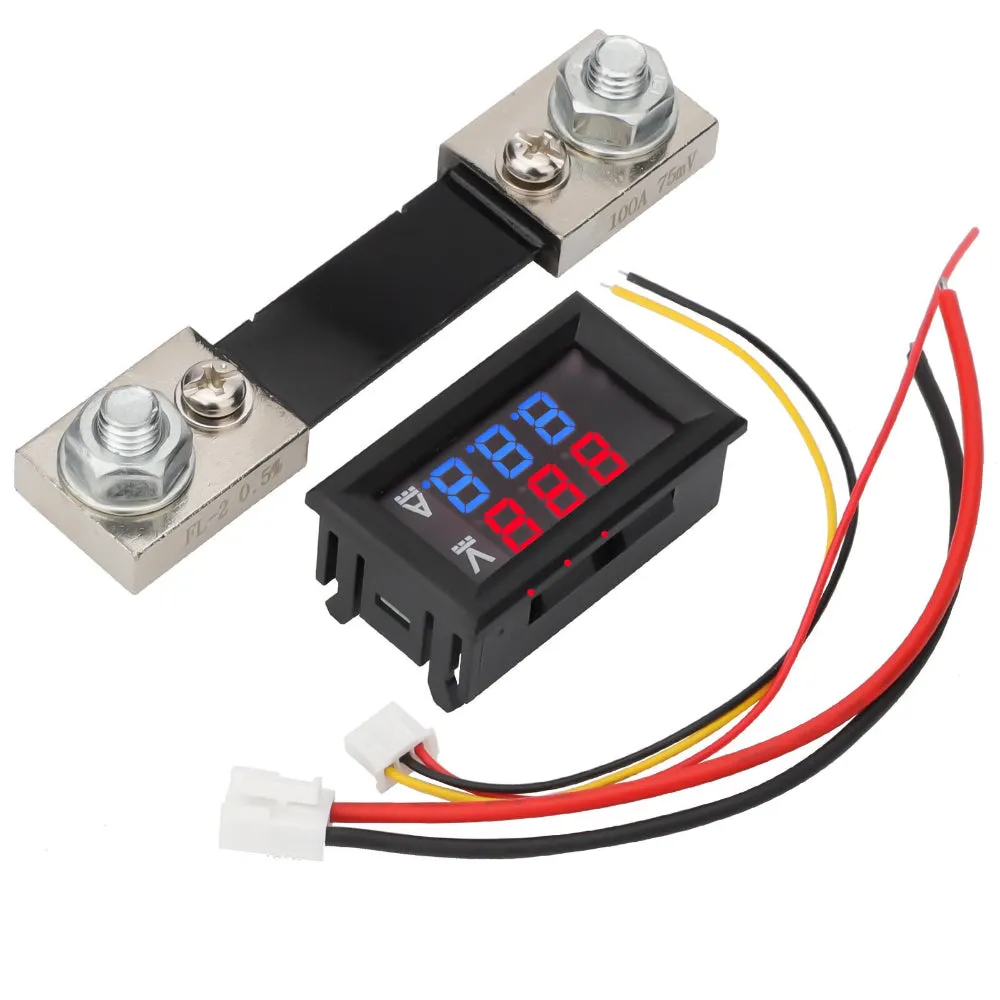

Package Includes
- 1 x Dual LED Panel Ampere Voltage Meter
- 1 x Current Shunt
