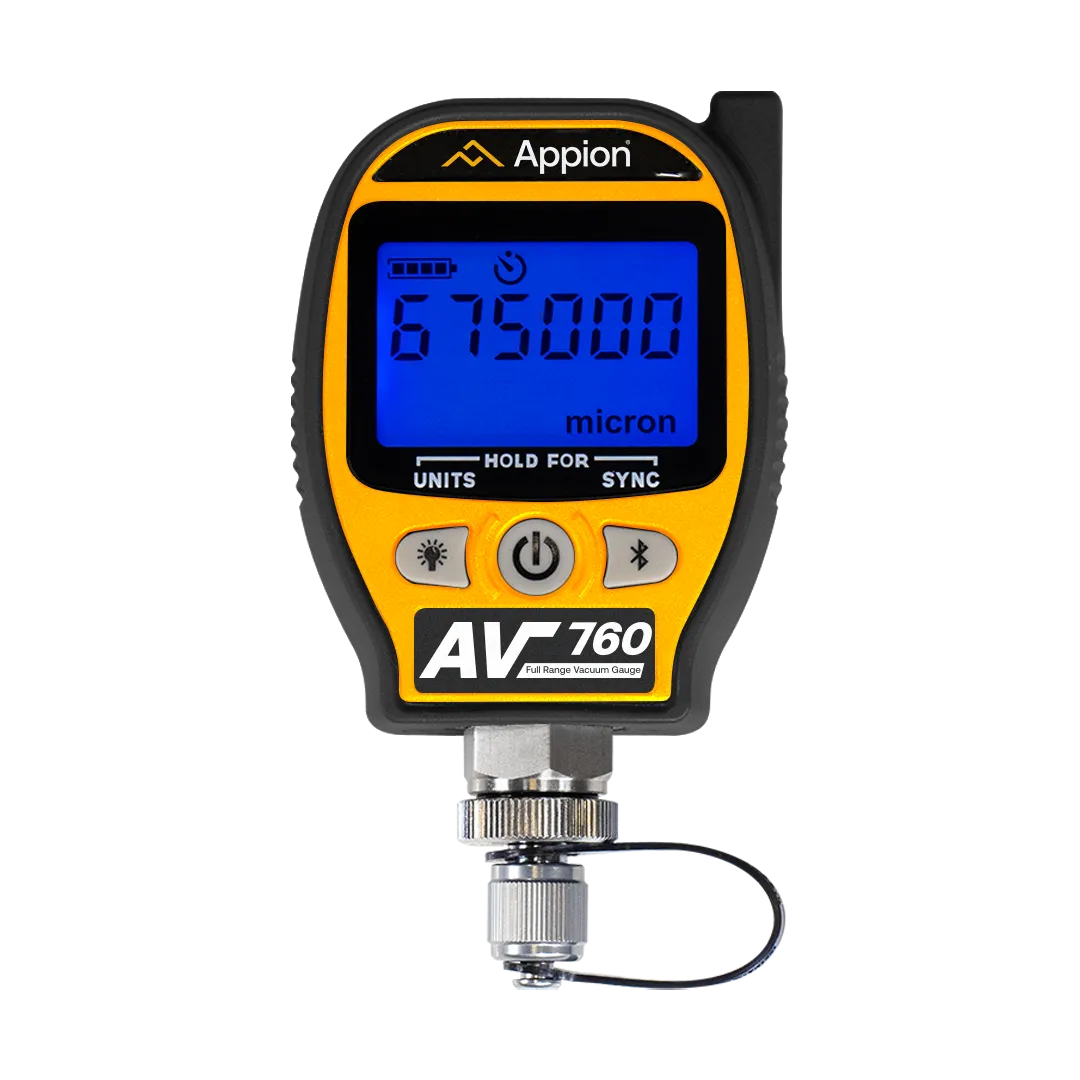

Appion AV760 Full Range Vacuum Gauge
Accurate Measurement from Atmosphere to 1 micron
Accurately measure the entire evacuation process from atmosphere to 1 micron and immediately detect large leaks with the Appion AV760 Wireless Full-Range Vacuum Gauge. The AV760 delivers 10-point Vacuum-Verified accuracy, elite technology, and advanced app functionality for remote, real-time readings, enabling advanced analysis and diagnosis. Reliable. Repeatable. Durable.
Features and Benefits
- High-Resolution Full-Range Response* - Atmospheric to 15k microns are displayed in 50-micron increments, and 15k to 1 micron are displayed within an ultra-fine 1 micron resolution.
- Oil protection - A filter screen and oil catch keep the sensors clean and help maintain accurate measurements.
- Durable - A rubberized water-resistant IP65 rated housing protects the gauge from the hazards of the jobsite.
- Advanced System Analysis - With the Appion Central™ App, the gauge is capable of live data-logging, reporting, decay testing, and more.

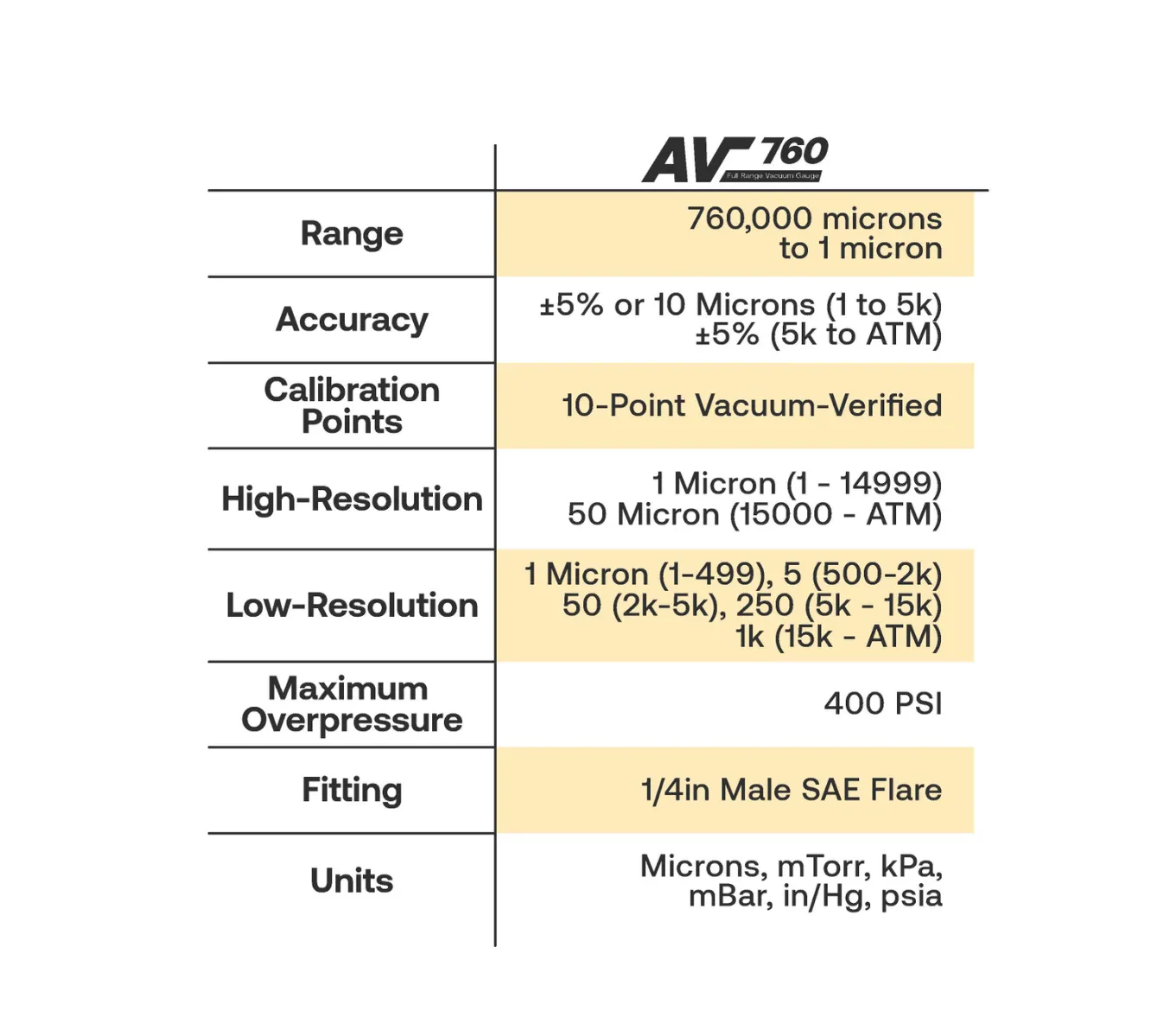

Specifications
| Range: | 760,000 to 1 microns |
| Accuracy: | ±5% or 10 microns (1 to5k) ±5% (5k to ATM) |
| Calibration Points: | 10-point Vacuum-Verified |
| Resolution: | 1 micron (1-14999), 50 micron (15000-ATM) |
| Maximum Overpressure: | 400 psi |
| Fitting: | 1/4in Male SAE Flare |
| Units: | Microns, mTorr, kPa, mBar, in/Hg, psia |
| Included Adapter: | (1) 4in 45˚ 1/4in Female FL to 1/4in Female FL Connector |
| IP Rating: | IP65 |
