Product Description

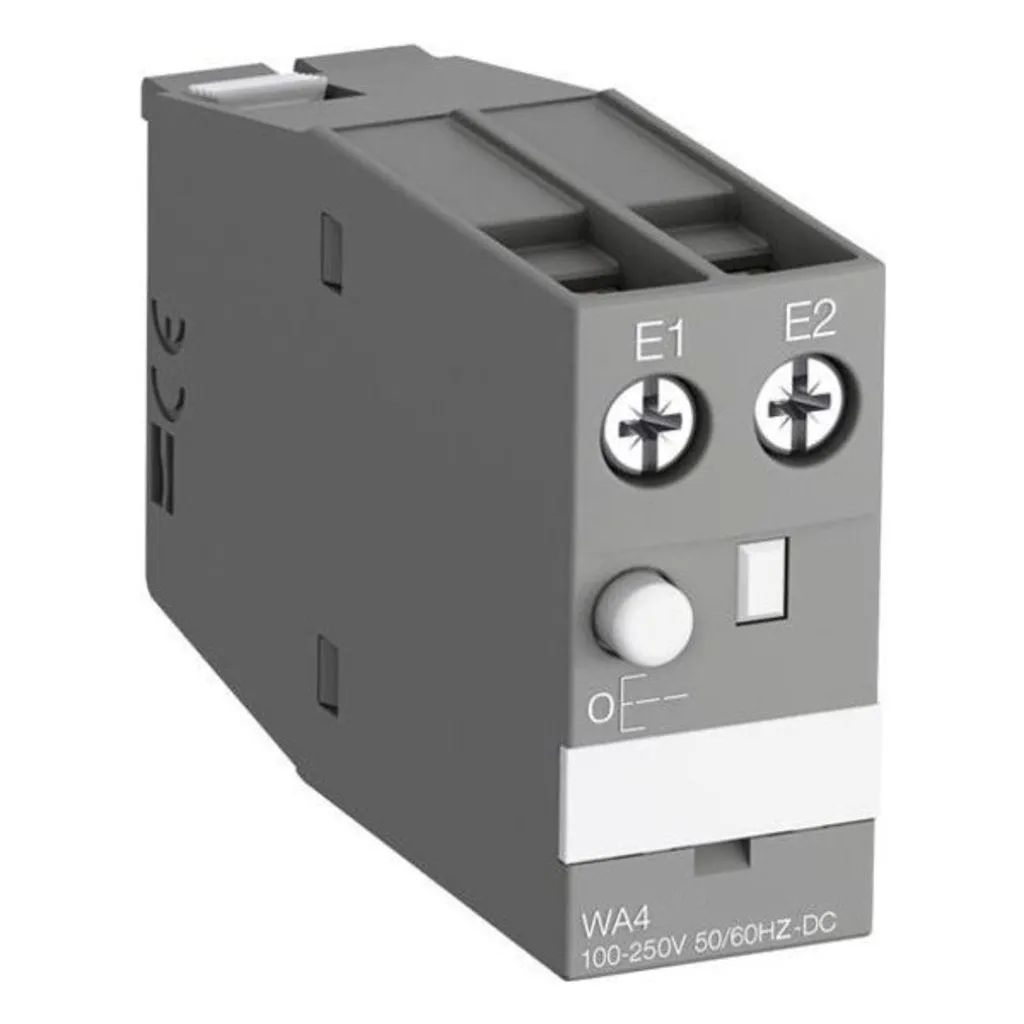

• WA4 mechanical latching units for AF09(Z) ... AF38(Z) contactors and NF(Z) contactor relays ensures that the contactor or contactor relay remains switched on even if there is a lack or a failure of voltage, in application such as energy conservation

• Standard contactors can be easily converted into compact latched contactors

• The WA4 block contains a mechanical latching device with 24 V DC electromagnetic impulse unlatching or manual unlatching

• Extend your 24 V DC control solutions with a direct PLC control by 24V DC 500 mA without additional interface relay

• Extend your auxiliary control circuit by adding additional 1-pole front mounted CA4 and 2-pole side mounted CAL4 auxiliary contact blocks. Design easily your installation with 25% less depth required in panel mounting

• Product Main Type : Accessories for Block Contactors

• Product Name : Mechanical Latching Unit

• Rated Control Circuit Voltage (U_c) : DC Operation 24 V

• Tightening Torque : Control Circuit 1.2 N·m

• Wire Stripping Length : Control Circuit 10 mm

• Product Net Weight : 65 kg
